Industrial Resistor Alumina Ceramic Rod Anti - Abrasive Resistance To Break 97%
The ceramic rods is made of high-purity ceramic raw materials, which are formed by dry pressing or cold isostatic pressing, high-temperature sintering and precision machining.
Features:
1. Refractory, anti-resistance temperature, withstand1800 degree,
2. Industrial Ceramic, porous, fine polished with logo printed
3. Keep Long Service Life. tolenrance can reach +-0.005
4. 97% Alumina ceramic
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance, solid cylinder shape
7. OEM or ODM allow
8. High Purity Zirconia and Alumina Ceramic Material - option
Dimension and tolerance:
·Diameter as small as 0.2mm, depends on length
·Length as long as 550mm, as short as 0.5mm
·Diameter tolerance we could make as fine as 0.001mm
The length and special sizes can be customized, As per 100% drawing
95%,99%,99.7% Al2O3 Material Parameters:
| Item | Test Condition | Unit Symbol | 95%Alumina ceramics | 99%Alumina ceramics | 99.7%Alumina ceramics |
| The main chemical ingredient | | | Al2O3 | Al2O3 | Al2O3 |
| Bulk Density | | g/cm3 | 3.6 | 3.89 | 3.96 |
| Maximum Use Temperature | | | 1450°C | 1600°C | 1650°C |
| Water absorption | | % | 0 | 0 | 0 |
| ROHS Hardness | | | ≥85 | ≥89 | ≥89 |
| Flexural strength | 20° C | MPa (psi x 103) | 358 (52) | 550 | 550 |
| Compressive Strength | 20° C | MPa (psi x 103) | 2068 (300) | 2600(377) | 2600(377) |
| Fracture Toughness | K(I c) | Mpa m1/2 | 4-5 | 5.6 | 6 |
| Coefficient of thermal expansion | 25-1000° C | 1X 10-6/°C | 7.6 | 7.9 | 8.2 |
| Coefficient of thermal conductivity | 20° C | W/m °K | 16 | 30.0 | 30.4 |
| Thermal Shock Resistance | Tc | °C | 250 | 200 | 200 |
| Dielectricity constant | 1MHz.25°C | | 9 | 9.7 | 9.7 |
| Dielectric strength | | ac-kV/mm (ac V/mil) | 8.3 (210) | 8.7 (220) | 8.7 (220) |
| Volume Resistivity | 100°C | ohm-cm | > 1013 | > 1014 | > 1014 |
Type of ceramic plunger shaft piston rod us manufacturer (including but not only belows)
| Shaft plunger | Pump plunger |
| Wear Plunger rod | Filling Pump plunger |
| Pins rod | Water Pump plunger |
| Pump piston rod | Plunger rod |
| Pump shaft rod | Sleeve and bushing plunger |
| Machinable plunger | Piston plunger |
| Tip: For different industries, equipment,and environment, ceramic plunger have different function, We can machining ceramic plunger shaft piston rod , such as surface polishing, internal and external pipe wall threads, metal parts bonded, different shapes etc by custom requirement. |
Produce and machining
We can produce different sizes and shapes of the rod for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on
1. Can Be Custom By Drawing Or The Parameter
2.Can Be Offer a Samples Within 1--10 Qty
3. The Shipping Time Of The Samples Within 2days
4. Quick Delivery Via Fedex,Dhl,Ups,Tnt Etc.
For more informations (the price,payment etc), Please contact us or email: admin@cerampart.com

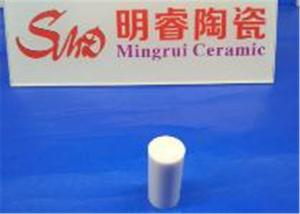

Products Display:
